Measured building surveys

We are experienced measured building surveyors providing technical drawings from survey data. Level of detail to suit project and budget.

A few examples below, click below for a larger image..

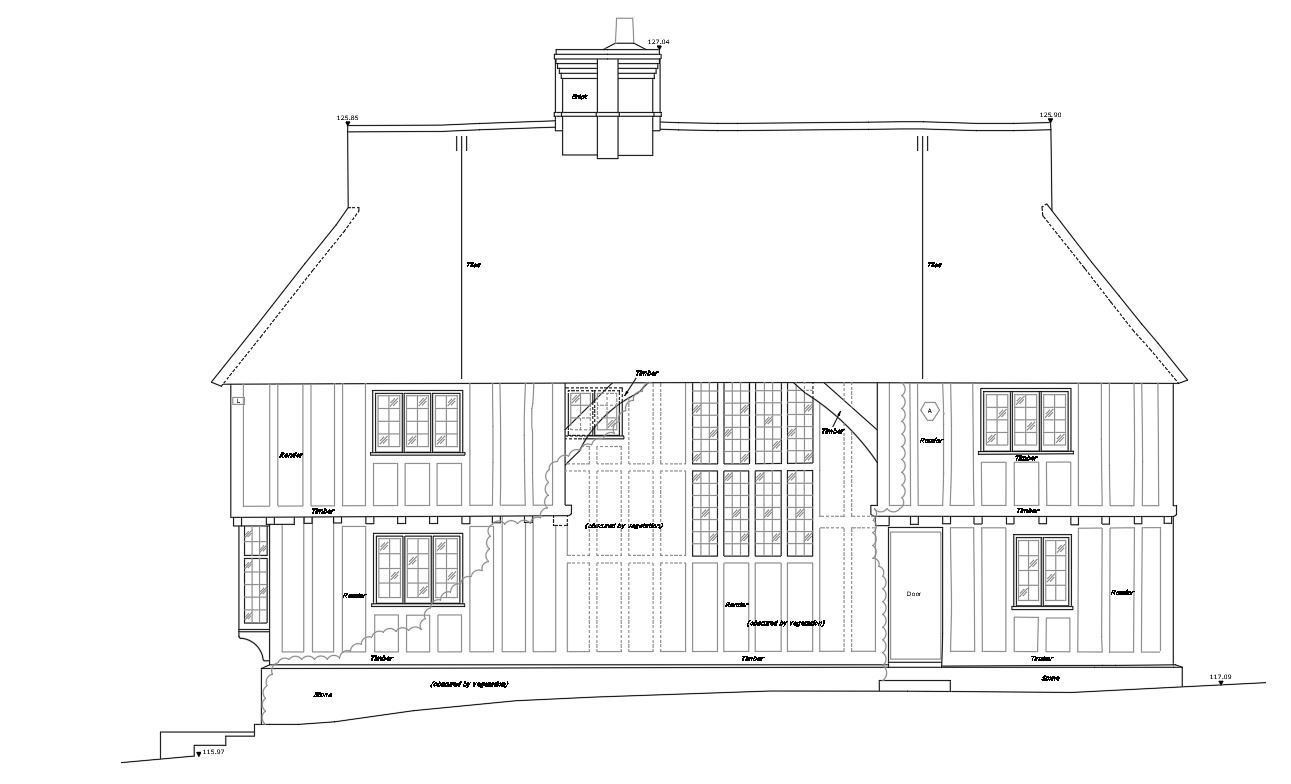

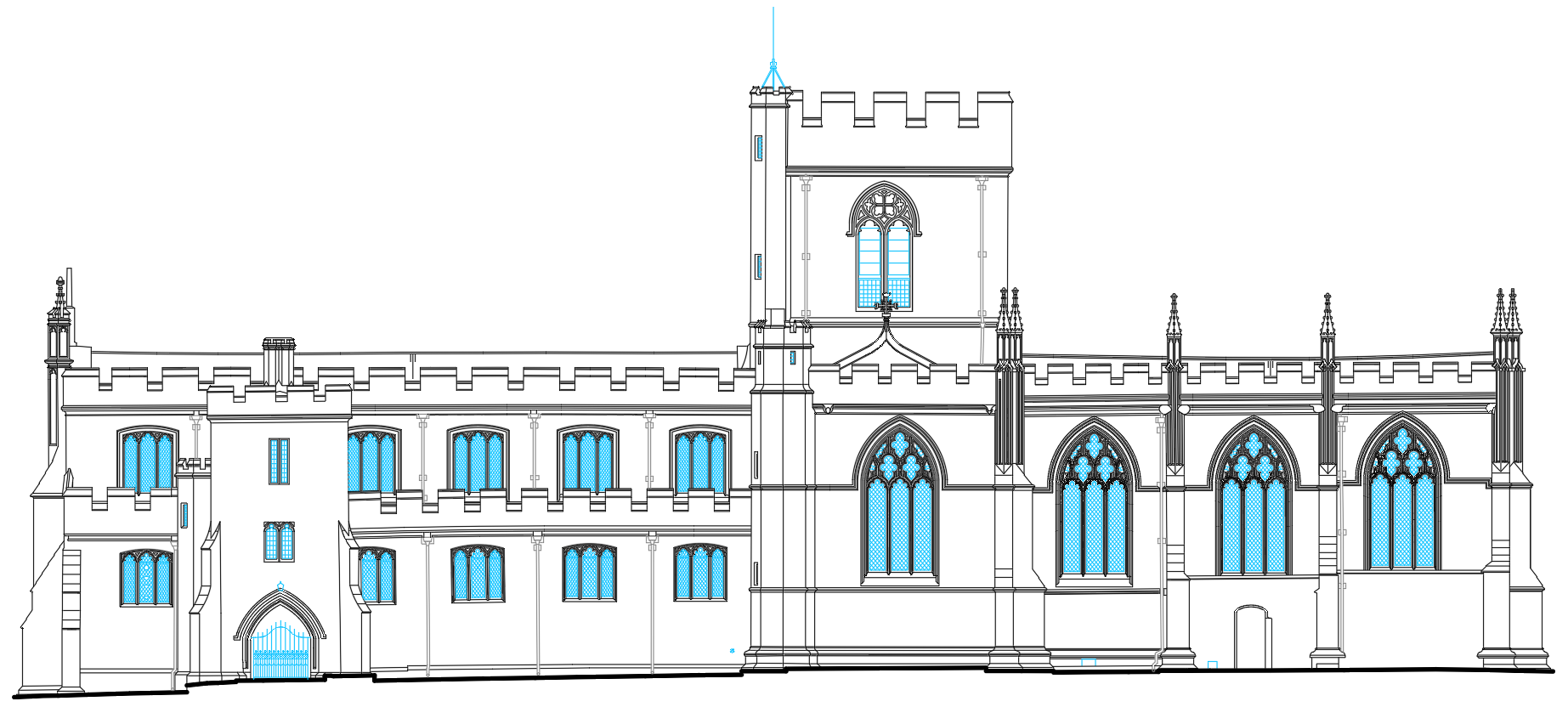

Elevations - Measured building surveys - wgp digital — Detailed elevations

Floor plans - Measured building surveys - wgp digital — Detailed elevations

We are fully equipped to provide a wide range of measured building surveys;

Floor plans
Elevations

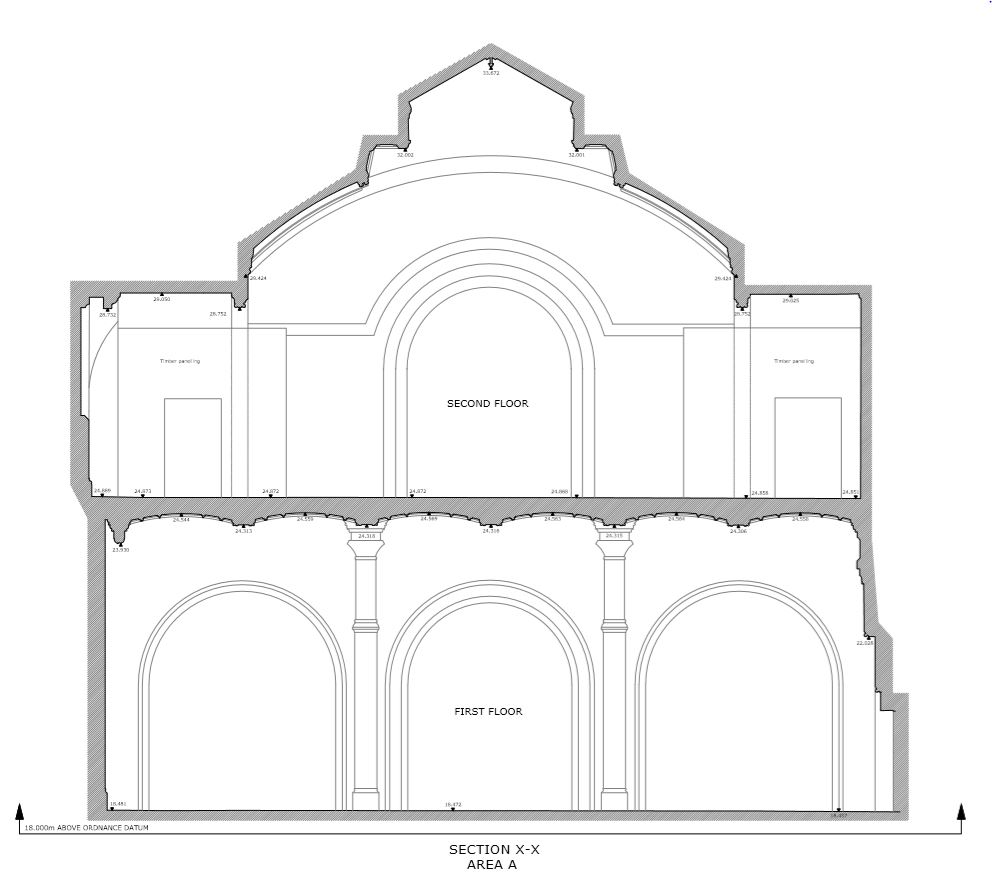

Sections – with or without elevational detail
Roof plans
Lease plans
Area letting floor plans
2D or 3D

Heritage detailing
Laser scanning and traditional techniques
Levels of detail to suit all budgets
Incorporate UAV/drone survey data
Commercial, residential and historic
Fully controlled – no assumptions
BIM

MEASURED BUILDING SURVEY

WHAT DOES A TYPICAL MEASURED SURVEY CONSIST OF?

A typical measured building survey would consist of floor plans, elevations and sections. Sometimes a roof plan is required. It’s wise to have a discussion first to determine what’s necessary to your project. Floor, ceiling, beam and window levels are usually standard. All of our surveys are fully controlled and no assumptions are made to squareness or verticality.

3d SOLID MODELLING

3d models using Autocad and Sketchup, created from traditional survey techniques, laser scanning, photogrammetry or a combination of the above.

A few examples below, click below for a larger image..

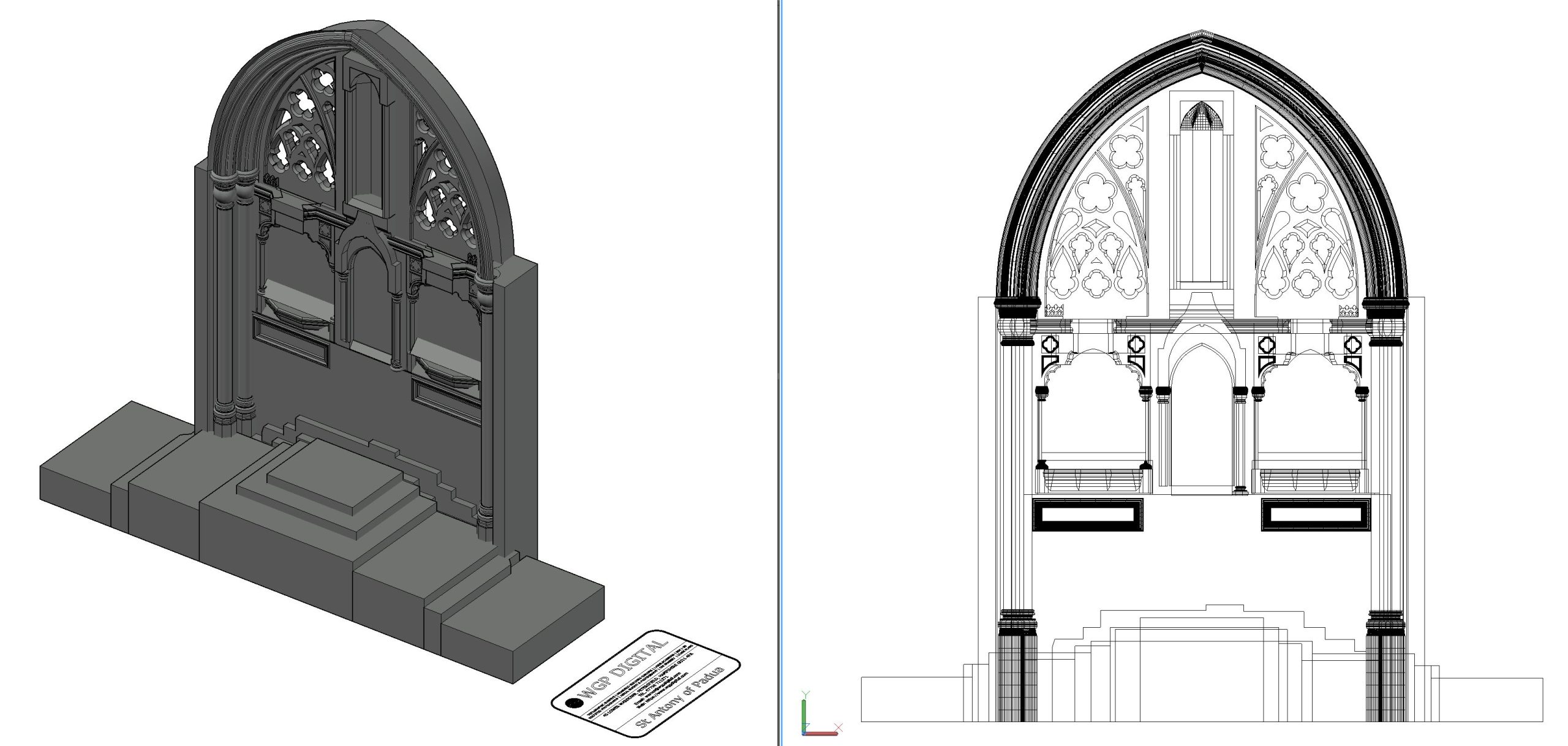

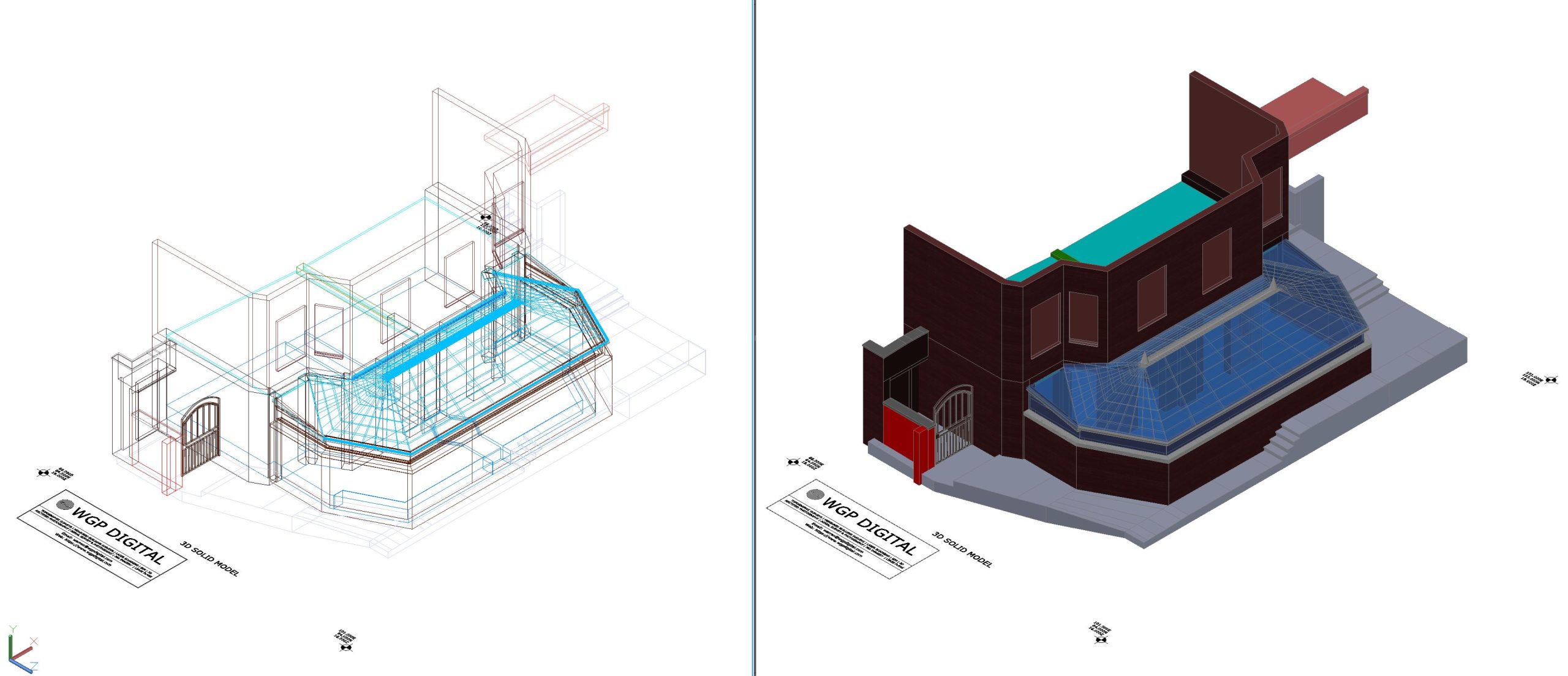

3dmodelling by wgpdigital — 3d solid model

BIM

All of our surveys can be carried out using Revit, in some cases this could have several advantages over 2D drawings, although of course 2D data can be extracted from a 3D survey!

Visit our BIM page here…
